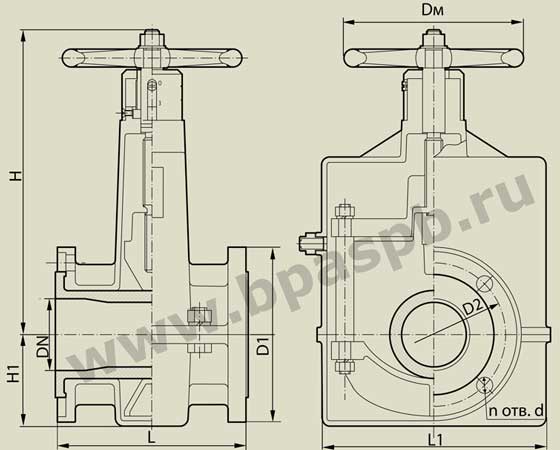

Nominal Bore, mm |
Dimensions, mm |
Weight, kg |
|
D |
D 1 |
D 2 |
D 3 |
L |
L 1 |
H |
d |
n |
|
50 |
50 |
160 |
125 |
160 |
180 |
162 |
286 |
18 |
4 |
7,3 |
|
80 |
80 |
195 |
160 |
200 |
210 |
250 |
340 |
18 |
4 |
14,2 |
|
100 |
100 |
215 |
180 |
280 |
230 |
304 |
405 |
18 |
8 |
20 |
Note: The version with sleeve
positive opening use with pressure PN up to 0,2 MPa (2 kgf/cm2).
Full bore.
Nominal pressure, PN – up to 1, 6 MPa.(16 kgf/cm2).
Full tight shut - off. 'OPEN/CLOSE' position indicator
available.
Direction of working medium - any.
Connection – flanges. Sealed body.
Working medium: liquid medium for water supply and sewerage
systems, not aggressive and aggressive media, mineral oils
and petroleum products.
Body material - aluminum.
Version - normal, export, tropical.
Low flow resistance factor - 0,1.
Working position of valve - any.

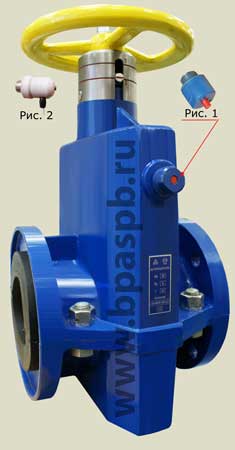

Mechanical indicator of sleeve's rupture availability. By the
special order the valve is completed with the
electromechanical (normally closed contsct) indicator of
sleeve's rupture (pic. 1). |
