Nominal Bore,
DN
mm |

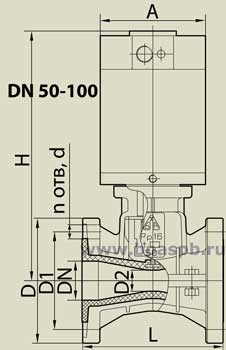

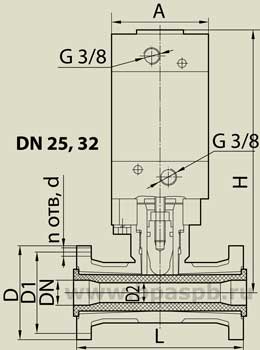

Dimensions,
mm |
Weight,
kg |
Actuator
Type |
N
(kgf) |
|
D |
D 1 |
D 2 |
n |
d |
A |
L |
H |
|
25 |
190 |
85 |
19 |
4 |
14 |
93 |
160 |
252 |
5,6 |
61М3Р080А0030 |
2000 (200) |
|
32 |
1105 |
100 |
28 |
4 |
18 |
93 |
180 |
282 |
6,5 |
61М3Р080А0035 |
|
50 |
160 |
125 |
27 |
4 |
18 |
135 |
180 |
320 |
13,2 |
61М3Р125А0038С01 |
6000 (600) |
|
80 |
195 |
160 |
45 |
4 |
18 |
135 |
210 |
507 |
20 |
61М3Р125А0055N2С01 |
15000
(1500) |
|
100 |
215 |
180 |
58 |
8 |
18 |
176 |
230 |
614 |
36 |
41М3Р160А0068N2С01 |
23500
(2350) |
Nominal pressure, PN – up to 1,6 Mpa
(16 kgf/cm2).
Working medium: liquid medium for water supply and sewerage
systems, not aggressive and aggressive media, mineral oils
and petroleum products.
Direction of working medium - any.
Full tight shut - off.
Connection – flanges.
Sealed body.
Version - normal, export, tropical.
Operaiting air pressure P oper 0,5-0,6 Mpa (5 - 6 kgf/cm2).
Low flow resistance factor - 0,6 for DN 50; 80; 100 and - 0,1
for DN 25; 32.
Body material - aluminum.

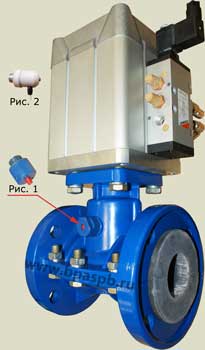

Mechanical indicator of sleeve's rupture availability. By the
special order the valve is completed with the
electromechanical (normally closed contsct) indicator of
sleeve's rupture (pic. 1).
Valve working
position - any with additional supporting pier for actuator,
exept position with actuator down.
By the customer
request the Pneumatic actuator could be completed with the position sensor.
|
