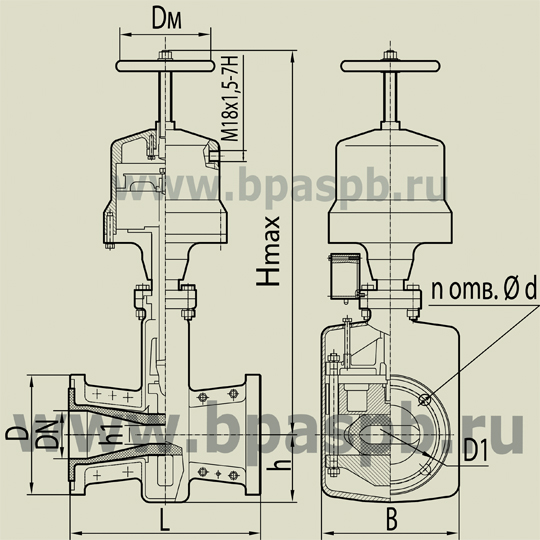

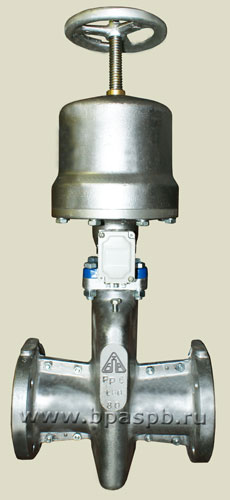

Pinch Valve with Pneumatic Actuator, 33a603r, P98005M


DN 50 80 100 125 150 200
L 230 310 350 400 480 600
Hmax 460 630 765 770 1045 1045
h 82 110 143 150 200 204
h1 25 40 60 60 100 92
D 160 195 215 245 280 335
d 18 18 18 18 23 23
n 4 4 8 8 8 8
D1 125 160 180 210 240 295
B 180 224 310 336 400 484
DM 120 160 200 200 280 280
Weight, kg 13 23 43 46 87 103


Note: The version with sleeve positive opening use with pressure Pwork PN up to 2 kgf/cm2 (0,2 MPa).

Nominal pressure PN - 6 kgf/cm2 (0,6 MPa).
Connection - flanges.
Working medium: liquid medium for water supply and sewerage systems, not aggressive and aggressive, pulps, liquid and viscous media, mineral oils and petroleum products.
Sizes of flanges of the pipeline in accordance with State Standard.
Pressure of operate air at pneumatic actuator, Poper 5 - 6 kgf/cm2 (0,5 - 0,6 MPa).
Direction of working medium - any.
Working position of the valve - with actuator up.
Body material - aluminium.
Hydraulic resistance factor for DN 50, 80, 100, 125 - 0.6, for DN 150, 200 - 0.4.
Full tight shut - off.
